Hale Custom Dimension Dog Doors for Walls

• Custom Dimension (width & height) Dog Doors & Cat Doors for Walls
• Sturdy aluminum framing available in 4 colors
• Choice of a single flap or double flap depending on your insulation needs
• Trim to fit aluminum tunnel for walls 2" - 10" thick or 2" - 16" for thicker walls
• Clear & flexible vinyl flaps are easy for pets to use and share
• Includes locking cover that loads from the top and matches frame color
• We'll need more information to complete your order.  In your Order Confirmation email there is an Orange button with "Finish Your Order".  Click on it to enter to answer questions to finish your order. Thank you!
• NOTE:  Built-to-order, your order may take 8-10 business days to ship; tracking number emailed when shipped

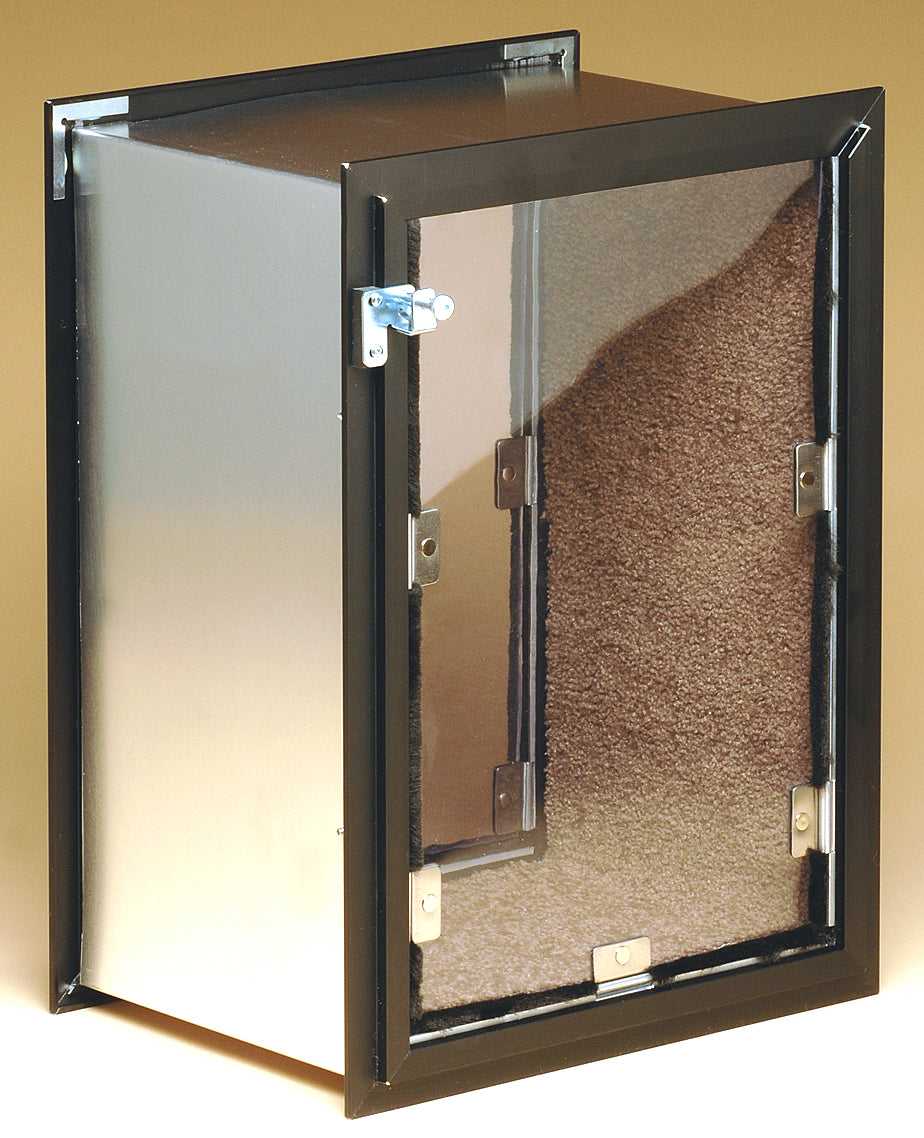

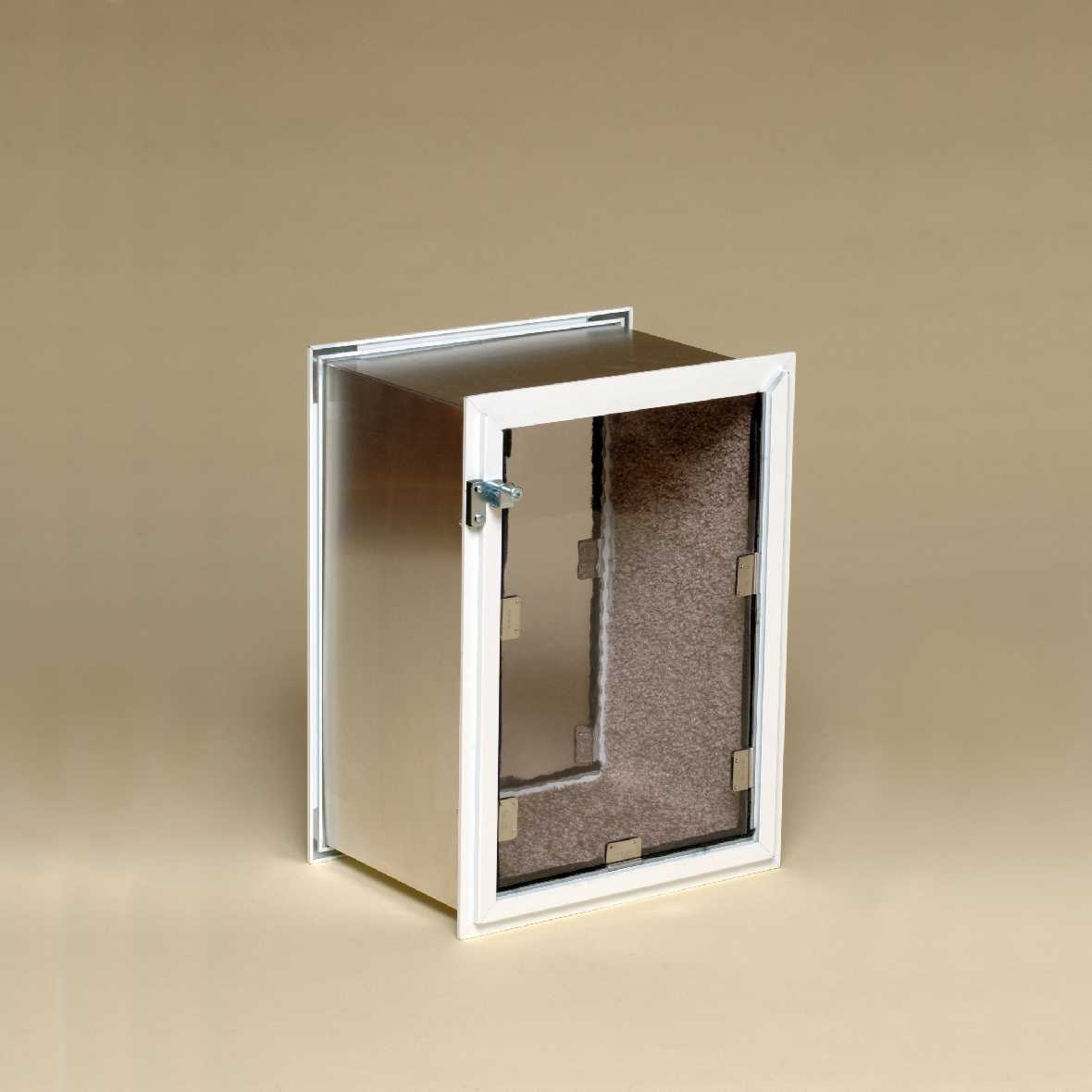

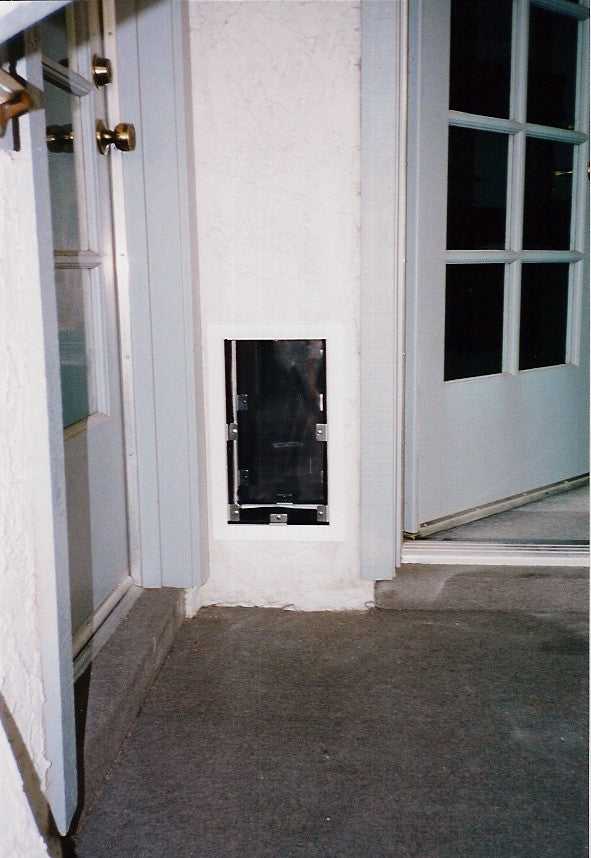

Hale Pet Door Custom Wall Dog Doors are ideal for two main types of installations. The first is to replace an existing dog door insert in wall with a new, custom fit width and height (tunnel is trim to fit) Hale door. If your dog door pet door through wall was one that was perhaps installed by a previous pet owner, made by a brand that is not meeting your insulation needs or has been discontinued so replacement parts are no longer available, the Hale custom door is a great option. The second type of pet door model is for people who have a limited wall area to work with for a wall doggie door and need specific dimensions not offered by standard pet doors for walls. These Hale custom pet doors are a simple fix for a complex problem.  Each pet door comes with a color-coordinating locking cover that loads from the top.  You can change from top-loading to side-loading locking cover here.

Just provide the rough cut width and height (the current hole in the wall), the side from which you want the locking cover to load, and the standard or extended tunnel options. With that Hale pet products will build a durable, energy-efficient custom pet door just for you.

Looking for something else? Check out our full selection of through wall dog doors or Hale pet products.

Features:

• Flexible vinyl flaps are available in a single or double flap option:
• Single: temperate/moderate climates.
• Dual Flap: severe climates.
• Magnets along the flap edge ensure that the flap stays shut when not in use.
• Perimeter of the flap is lined with weather stripping to prevent drafts from blowing through for energy efficiency.

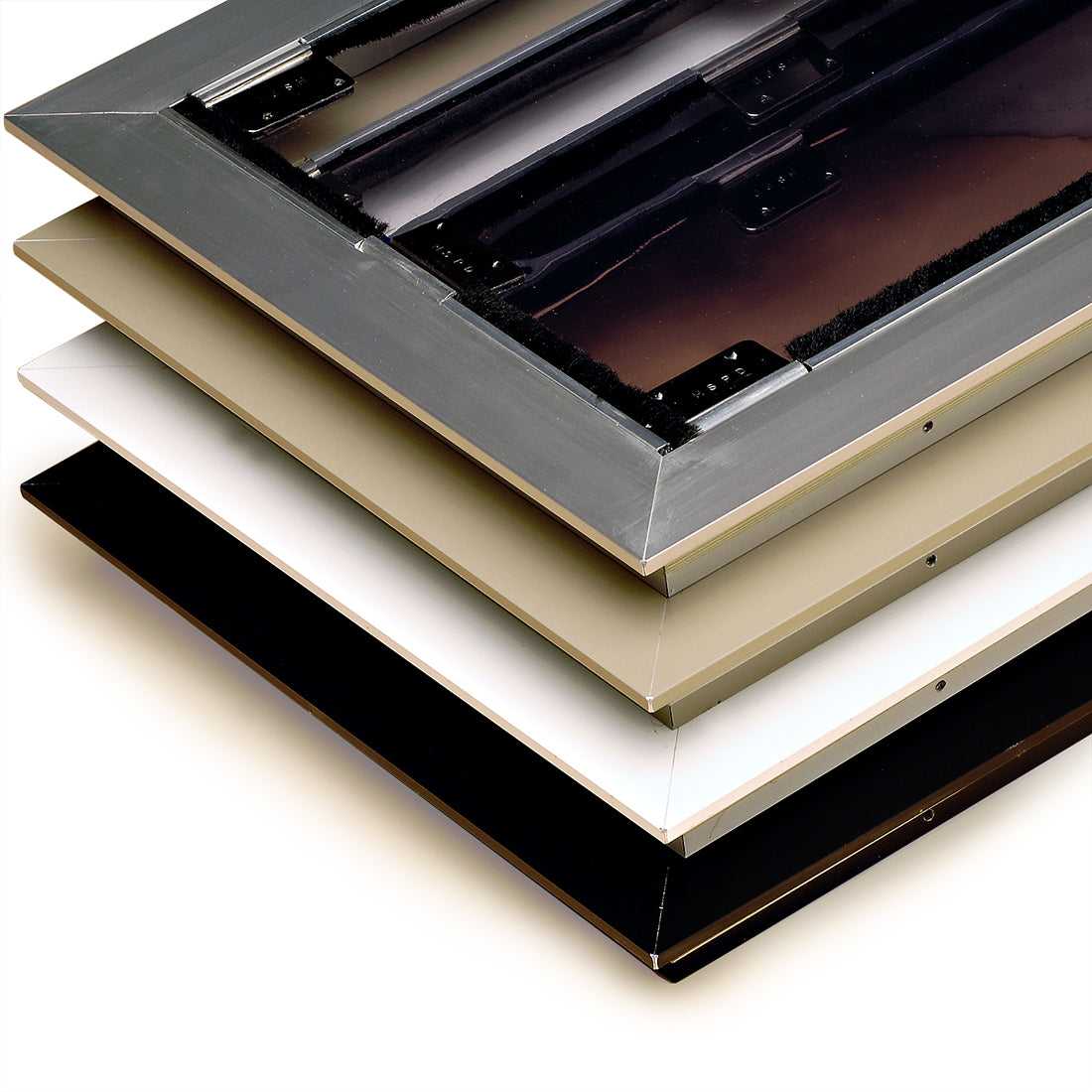

• Durable, aluminum frame comes in 4 colors: White, Arizona Beige, Bronze, and Brushed Aluminum. Custom option of mixing and matching the interior frame color is available for an additional cost.

• Sturdy, aluminum, trim-to-fit tunnel for various wall thicknesses
• Comes with a sturdy locking cover that matches the frame color and has a steel pin lock. Customize the door by adding a side-loading locking cover if the default top-loading cover doesn't work for you.

Ordering Instructions:

• Remember that the width you specify is the rough cut and not the flap dimension. You will lose 2 1/16" in width and 1 3/8" in height due to the pet door framing. Make sure there is enough room left for your pet. We want to ensure that your pet will feel comfortable using the pet door, so we recommend measuring your pet prior to ordering.

• If you need to fill an existing hole/replace a wall pet door, measure the height and width in 3 locations: near the top, middle, and bottom. Choose the narrowest of both height and width for your dimensions. Do not add an extra width or height when specifying the dimensions.  Please note:  Maximum Rough Cutout in one direction cannot exceed 23 3/8".

• Once you have the height and width measurements, multiply them together to get the total square inches. For example, if you have measured 10" x 12", the result is 120 inches. Using this number, select the square inch range in the drop-down menu. Please note that the square inch ranges are only used for pricing purposes. The pet door is built to your exact dimensions and is not adjustable. Make sure that the height and width dimensions, when multiplied, result in a number of square inches within the range that you specified in the drop-down menu.
• Choose whether you would like a single or double flap.
• Choose between White, Arizona Beige, Bronze, or Brushed Aluminum for your frame color.
• Provide the rough cut width and height in the drop-down menu. Please note that the minimum rough-cut dimension is 7" x 7".

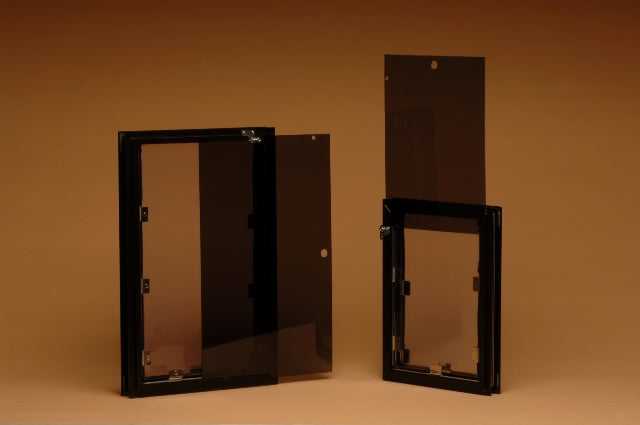

• The locking cover slides down from the top of the pet door and secures with a steel deadbolt. If there is an obstruction that would prevent the cover from functioning properly, you can add a side-load option.
• If your wall thickness exceeds 10", you'll need the 16" tunnel option. This option adds 10% to the cost of the pet door. Note that there is no accommodation for walls thicker than 16".
